Pipe Bursting in Phoenix, AZ

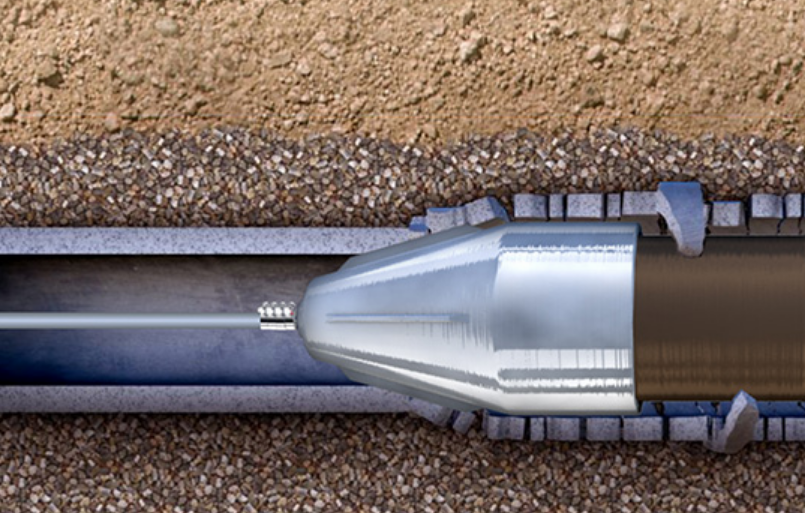

Pipe bursting is a trenchless sewer replacement method that removes your old, damaged sewer line and installs a brand-new HDPE (high-density polyethylene) pipe in a single step -- without digging an open trench. A steel bursting head is pulled through the existing pipe using a hydraulic winch, fracturing the old pipe outward into the surrounding soil while simultaneously dragging the new pipe into place behind it. The process requires only two small access points instead of a continuous trench.

These are two fundamentally different repairs:

• Pipe lining (CIPP, epoxy, UV-cured, pull-in-place) repairs the existing pipe from the inside by creating a new liner or coating within it. The old pipe stays in the ground. Best for pipes that are damaged but still structurally intact.

• Pipe bursting replaces the entire pipe. The old pipe is destroyed and a new HDPE pipe is pulled through in its place. Best for pipes that are collapsed, severely deteriorated, or beyond repair.

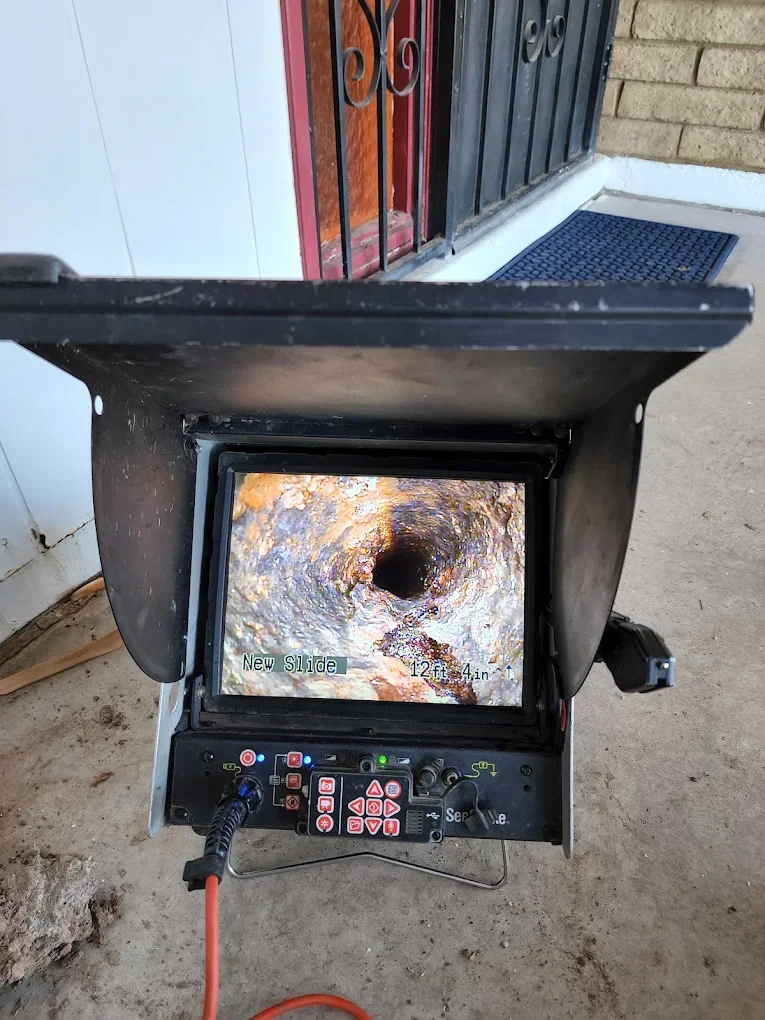

If your pipe can be saved, lining is typically less expensive and less invasive. If it can't, pipe bursting is the solution. Phoenix Trenchless offers both and determines the right method during your free camera inspection.

Pipe bursting is the go-to solution when:

• The sewer line has fully collapsed and there's no pipe structure left for a liner to bond to

• There's severe structural failure along most of the run

• The pipe material is so deteriorated (heavily corroded cast iron, crumbling Orangeburg) that it wouldn't survive the cleaning process required for lining

• You want to upsize the pipe, because the bursting head pushes the old pipe outward, the new pipe can be slightly larger in diameter than the original

• You want a full pipe replacement with modern materials rated for 50 to 100 years

Pipe bursting works on most common sewer pipe materials found in Phoenix homes:

• Cast iron: common in pre-1970s homes

• Clay: found in older neighborhoods like Encanto and Arcadia

• Concrete

• PVC: standard in 1980s and newer construction

• Orangeburg: a tar-paper pipe prone to collapse, found in some mid-century homes

The one exception is existing HDPE pipe, since HDPE is flexible, the bursting head can't fracture it. However, HDPE rarely needs replacing because of its durability.

HDPE (high-density polyethylene) is the pipe material installed during pipe bursting. It's a significant upgrade over whatever your old sewer line was made from:

• Seamless and jointless: eliminates the weak points where roots invade and soil shifting causes cracks

• Flexible: handles ground movement without fracturing, critical in Phoenix where monsoon wet-dry cycles shift soil around buried pipes

• Corrosion-resistant: won't rust like cast iron or degrade like Orangeburg

• Chemical-resistant: stands up to abrasion and wastewater chemicals

• 50 to 100 year expected service life : outlasts the original pipe and likely the house itself

Most residential pipe bursting projects are completed in one to two days. The process includes a camera inspection, locating and marking the line, creating two small access excavations, pulling the new pipe through, reconnecting lateral drain lines, running a final camera inspection, and backfilling the access points. Compare that to traditional dig-and-replace, which can take a week or more plus additional time for landscape and driveway restoration.

Minimal disruption is one of the biggest advantages of pipe bursting over traditional excavation. The process requires only two small access points, typically one near your house and one near the street, rather than a continuous open trench along the full pipe run. Your landscaping, driveway, walkways, and pool decking remain intact. The access points are backfilled and restored after the job is complete.

Caliche soil is one of the biggest cost drivers in traditional sewer replacement in the Phoenix Valley. This calcium-carbonate layer is essentially natural concrete and can be several feet thick, requiring specialized equipment and significantly more labor to excavate through.

Pipe bursting minimizes the amount of caliche you deal with. Instead of trenching through it along the entire pipe run, you're only breaking through it at two small access points. The bursting head follows the existing pipe path underground. When you factor in the savings on caliche excavation, landscape restoration, and driveway repair, pipe bursting is often significantly less expensive than traditional replacement for Phoenix homeowners.

Yes. Because the bursting head fractures the old pipe outward into the surrounding soil, the new HDPE pipe can be slightly larger in diameter than the original. This is useful for homes that have added bathrooms, ADUs, or other plumbing fixtures since the original sewer line was installed. Upsizing improves flow capacity and gives your system room to handle increased demand.

Pipe bursting is a full pipe replacement, so it's a larger investment than lining methods. But it's consistently less expensive than traditional open-trench excavation in the Phoenix area, especially once you account for caliche excavation, restoration, and extended labor. Phoenix Trenchless provides transparent, upfront pricing after your free camera inspection, no hidden fees. We also offer financing and will beat any written competitor estimate.
